 导热型硅橡胶: |
|
|
- 产品尺寸:
ST-600: 0.28/0.45 M/M X 30CM
S1-PP0: 0.15~0.3M/M X 30CM
- 产品特性:
热传导性佳
可连续使用于 -60°C~180°C
- 产品应用:

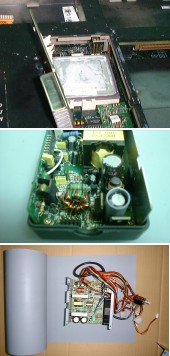

ST-600 散热片/电源供应器/ 笔记型计算机
S1-PP0 TFT-LCD
TG-100 CPU, ICs
|
|
|
 双面贴合玻纤布
ST-600:
- Product Introduce:
PowerCool®ST-600 is a composite of
silicone rubber and fiberglass It is
specially offers high thermal conductivity.
- Application:
 FPD(PDP)
cooling
Switches
and power supply (power transistors)
CD-ROM
and DVD (motor drive ICs)
PC,
notebook, electronic equipment( CPUs, LSis, etc)
- Properties:
|
| Physical property |
ST-600 |
TEST METHOD |
| |
S2G9C-028 |
S2G9C-045 |
|
| Color |
GRAY |
Visual |
| Thickness (mm) |
0.28 |
0.45 |
- |
| Composition |
Silicone
rubber / glassfiber |
- |
| Continuous use temperature °C |
-60~180 |
- |
| Hardness (Shore A) |
80 5 |
805 |
ASTM D2240 |
| Density (g/cm3) |
2.2 |
2.2 |
ASTM D792 |
| Tensile Strength (Kg/cm2) |
18010 |
18010 |
ASTM D412 |
| Tear strength (kg/cm) |
40 |
35 |
ASTM D624 |
|
Thermal transfer property |
|
|
|
| Thermal conductivity W/m-K |
1 |
1 |
|
|
Electrical property |
|
|
|
| Breakdown votage, Volts a-c Min. |
5000 |
7000 |
ASTM D149 |
| Volumne resistivity, Ω-m; |
4x1014 |
4x1014 |
ASTM D257 |
| UL-94 V0 |
94V0 rating |
94V0 rating |
UL |
|
|
top
|
|
 TFT-LCD
用硅橡胶板片 S1-PP0
- Product Introduce:
PowerCool®S1PP0 is silicone sheet. It
is used specially for the assembly of TFT-LCD module. It should
uniformly distribute heat and pressure between the heating tool and
connectors so that it should not cause any damage to PCB either by
heat or pressure during the assembling process.
- Properties:
|
|
| Physical property |
S1PP0-020 |
TEST METHOD |
| Color |
GRAY |
Visual |
| Thickness (mm) |
0.20 |
- |
| Composition |
silicone rubber |
- |
| Continuous use temperature °C |
-60~180 |
- |
| Hardness (Shore A) |
70 |
ASTM D2240 |
| Density (g/cm3) |
>2 |
ASTM D792 |
| Tensile strength (Kg/cm2) |
54 |
ASTM D412 |
|
Thermal transfer property |
|
|
| Thermal conductivity W/m-K |
1 |
ASTM D5470 |
|
Electrical property |
|
|
| Breakdown votage, Volts a-c Min. |
5000 |
ASTM D149 |
| Volume resistivity, Ω-m |
4x1014 |
ASTM D257 |
| UL-94 V0 |
94V0 rating |
UL |
|
top
|
|
 导热膏
TG-100
- Spec:
PowerCool®TG-100 is a nonflowable,
silicone-based, high performance
thermal conductive grease designed for
the most demanding applications where non-electrically conducting grease
is required. The TG-100 makes it ideal for situations where
automatic dispensing or screen-printing were required.
- properties:
|
|
| Physical property |
TG-100 |
TEST METHOD |
| Color |
white |
Visual |
| Density (g/cm3) |
2.03 |
- |
| Pentatration before working |
200 |
ASTM D217 |
| Pentatration after working |
280 |
ASTM D217 |
| temperature °C |
-60~200 |
- |
| volatile |
1% |
ASTM D792 |
|
Thermal transfer property |
|
|
| Thermal conductivity W/m-K |
1 |
ASTM D5470 |
|
Electrical property |
|
|
| Breakdown votage, Volts a-c Min. |
2.8 |
ASTM D150 |
| Volume resistivity, Ω-m |
1.0x1013 |
ASTM D257 |
|
top
|
|
|
