Laminated Products

No.1 CHOICE of SOFT & SOUNDLESS ONLY in FRG
Tumble Dry Low 10 Times Pass

  • We could laminate different quality of film, including hydrophilic,
       porous film, for soft hand feel of 2 layer or 3 layer.

    The laminating film includes as follow:
  • TPU film, waterproof, breathable
  • The famous membrane, DupontT active Layer,waterProof,
    breathable high temperature resistance
  • The famous membrane, Sympatex®, waterproof, breathable
  • The medical film, waterproof, breathable, steam sterilization for 134C
  • PTFE film, waterproof, breathable, high temperature resistance and
    chemical  resistance

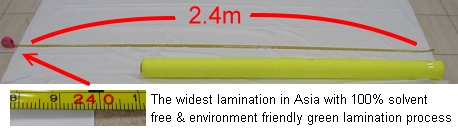

項目符號 Green-lami® - The widest lamination in Asia New
項目符號 COMFYTEX® - Transfer Coating & laminating
項目符號 COMFYTEX® - Medical using fabrics
項目符號 COMFYTEX® - Using for Hospital Sheet
項目符號 COMFYTEX® - Using for Breathable Outdoor
項目符號 HYMELA® - Hunting Fabrics
項目符號 HYMELA® - Dot Laminating Products
項目符號 HYMELA® - Stretchable
項目符號 HYMELA® - Sandwich - 3 LAYER


FUNCTIONAL
SANDWICH PRODUCTS





Variety Fabric Chosen

  • Woven Fabrics:
    cotton, synthetic, blended, tweed, stripe, check, twill, dobby.etc.
  • Knitted Fabrics:
    single, double jersey, tricot mesh, brushed, fleece, interlock, stretched, print, special finish.etc.
  • Functional Fabrics:
    quick-dry, water-repellence.etc

Green-lami®

  • GREEN-LAMI® products are laminated by PolyUrethane Reactive Hot
    Melt(PURHM). PURHM is a environmental-friendly adhesive, because it
    is a 100% solid content adhesive ( non solvent inside). This kind
    adhesive also can resist hydrolysis and keep the bonding strength
    even in totally wet condition. Even GREEN-LAMI® has durable property
    by washing, tumble dry or dry cleaning.
  • Character:
    The coating width we can do is 60"~94"(150cm~240cm)
    Wash 10 times up
    Tumble dry 10 times up
    Waterproof W/P 10000 mmH2O up
    Soft hand feel & Noiseless
    Comfortable touch
    Dry clean more than five times
COMFYTEX ® - Transfer Coating & laminating
  • CHARACTERS:
    100% Waterproof (W/R: > 5,000mm H2O)
    As Rainwear, Fashion & Working Garment,
       Child wear, Jacket
    TPU or PU membrane outside, based on
       fabrics with Soft hand feeling
    With any COLOR, Pearl, High Visibility
       Fluorescent
    Using for High Frequency Sealing

  • SPECIAL FUNCTIONAL:
    Anti-Bacterial & Anti-Mold using for Hospital Sheet
    Flame Resistant pass CPAI-84 using for fireman
    High Visibility Fluoro-Orange & Yellow
    Breathable Non-Swelling (WVT: 2000 g/M2.day)

    Using for Warp Knit
       a. Meshes
       b. Tricots
       c. Spandex Blends
    Using for Circular Knit
       a. Single Jersey Fabrics
       b. Interlock
       c. Velour Fabrics
       d. Polyester & Cotton Stretch Fabrics
       e. Polyester / Cotton Fleece
    Using for Woven Fabric



top

COMFYTEX ® - Medical using fabrics
     Waterproof / Urine proof /
        Anti-blood penetration ASTM F1670 PASS
        Anti-virus  penetration ASTM F1671PASS


  • CHARACTERS:
    100% waterproof /Urine proof /Anti-blood &
       virus penetration
    As hospital sheet and medical using
       ASTM F1670 & f1671 PASS
    TPU membrane inside or outside, based on
       fabrics
    Easy care washable / cleaner / dry



COMFYTEX ® - for Hospital Sheet
  • CHARACTERS:
    100% Waterproof / Urineproof / Bloodproof
    As Hospital Sheet and Medical Using
    TPU or PU membrane outside,
       based on fabrics with Soft Feeling

  • SPECIAL FUNCTIONAL:
    Anti-Bacterial & Anti-Mold pass AATCC100
       after 10 times washing
    Flame Resistant pass CPAI-84
    Easy Care Washable / Cleaner / Dry

    Using for Warp Knit
       a. Meshes
       b. Tricots
       c. Spandex Blends


top

COMFYTEX ® - for Breathable Outdoor
  • CHARACTERS:
    100% Waterproof & Windproof
       (W/R: 10,000mm H2O by AATCC 127)
    Breathable
       (WVT: 5000 g/M2.day by ASTM E96 BW)
    As Jacket, Fashion
       Garment, Skiwear, Leisure suit
    Fabric outside, based on Breathable
       hydrophilic membrane with a Soft
       handfeeling.

  • SPECIAL FUNCTIONAL:

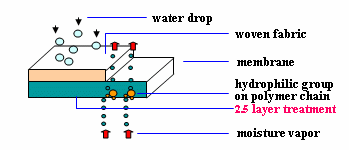

    2.5 Layer Treatment
    2.5 Layer design is engineered to be lighter,
       more packable and more breathable than 3
       Layer classic sandwich

    Using for Knit a. Tricots / Meshes as Inner
       Lining b. Spandex / Lycra Blends
    Using for Woven Fabric
       1. Taffeta
       2. Oxford
       3. Ripstop
       4. Twill
       5. Peach Skin Fabrics
       6. Taslon




top


HYMELA®  - Hunting Fabrics
        Noise less with waterproof and breathable
  • CHARACTERS:
    100% windproof and waterproof
       (W/R: 10,000mm H2O)
    Breathable (MVP: 1000 to 8000 g/M2.day
       by ASTM)
    AS Hunting, jacket, garment, skiwear, leisure suit
       hiking and golf wears
    Stretchable using for knit or woven fabric with
       O/P stretch fabrics
    Durable and easy care 20 times washing /
       dry cleaning
    Noise less and comfortable




HYMELA® - Dot Laminating Products
  • DESCRIBE:
    HYMELA® is perfect for challenging and erratic weather conditions.
    Our lamination products offers reduced weight,
    100% waterproof and high breathability.
    Show superb performance and a great value
    than traditional Coating products.


  • CHARACTERS:
    100% Waterproof (W/R: 10,000mm H2O)
    Breathable (WVT: 1000 to 8000 g/M2.day)
    As Jacket, Fashion Garment, Skiwear,
       Leisure suit hiking and golf wears
    Fabric outside, based on Breathable
       hydrophilic membrane with a soft handfeeling


  • SPECIAL FUNCTIONAL:
    HYMELA® Inserts Breathable, windproof
       and waterproof liners for gloves, hats and
       garments.
    Soft handfeeling keep fabric's own feeling
    3 Layers lamination
    Stretchable
    Durable and Easy Care
       20 times washing / dry cleaning



HYMELA® - Stretchable
  • DESCRIBE:
    We use non-porous membrane which is extremely
    flexible, unlike traditional PTFE membranes it resists
    tearing and remains waterproof even when stressed.


  • CHARACTERS:
    100% Waterproof & Windproof
       (W/R: 10,000mmH2O by AATCC 127)
    Breathable (WVT: 1000 to 8000 g/M2.day
       by ASTM E96 BW)
    As Jacket, Fashion Garment, Skiwear, Leisure
       suit, hiking and golf wears
    Woven and Knit fabric with Spandex / Lycra Blends
    Durable and Easy Care 20 times washing /
       dry cleaning

    Using for Knit
       a. Tricots / Meshes as Inner Lining
       b. Spandex / Lycra Blends

    Using for Woven Fabric with O/P
       Stretch fabrics

       a. Taffeta
       b. Oxford
       c. Ripstop
       d. Twill
       e. Peach Skin Fabrics
       f. Taslon


HYMELA® - Sandwich - 3 LAYER
  • DESCRIBE:
    Our laminates come complete with a Nylon /
    Polyester Tricot backing built-in. You don't
    have to add any other backing fabric to achieve durability and great performance.


  • CHARACTERS:
    100% Waterproof & Windproof
      (W/R: 10,000mmH2O by AATCC 127)

    Breathable (WVT: 1000 to 8000 g/M2.day
       by ASTM E96 BW)
    As Jacket, Fashion Garment, Skiwear,
       Leisure suit, hiking and golf wears
    Woven and Knit fabric with Spandex / Lycra Blends

    Durable and Easy Care 20 times washing /
       dry cleaning

    Using for Woven Fabric with O/P
       Stretch fabrics

       a. Taffeta
       b. Oxford
       c. Ripstop
       d. Twill
       e. Peach Skin Fabrics
       f. Taslon

    Using for Knit Fabrics
       a. Tricots / Meshes as Inner Lining
       b. Spandex / Lycra Blends





top
